EXPRESS RANGE
Fast charging for the workplace
Express
DC fast charging stations
Every year more electric vehicles (EVs) hit the road and newer EVs can travel further than ever. For most EVs, AC charging is enough, but there are times when faster charging is necessary. The ChargePoint Express is the right station for those occasions; whether you want to complement an AC charging programme or need fuelling for longer distance trips.
The Express provides high-power DC charging in a small footprint. It is thoughtfully designed and is as intuitive to use and manage as an AC station. Express is a smart, networked fast charger that can be deployed two different ways to best meet the needs of the location.

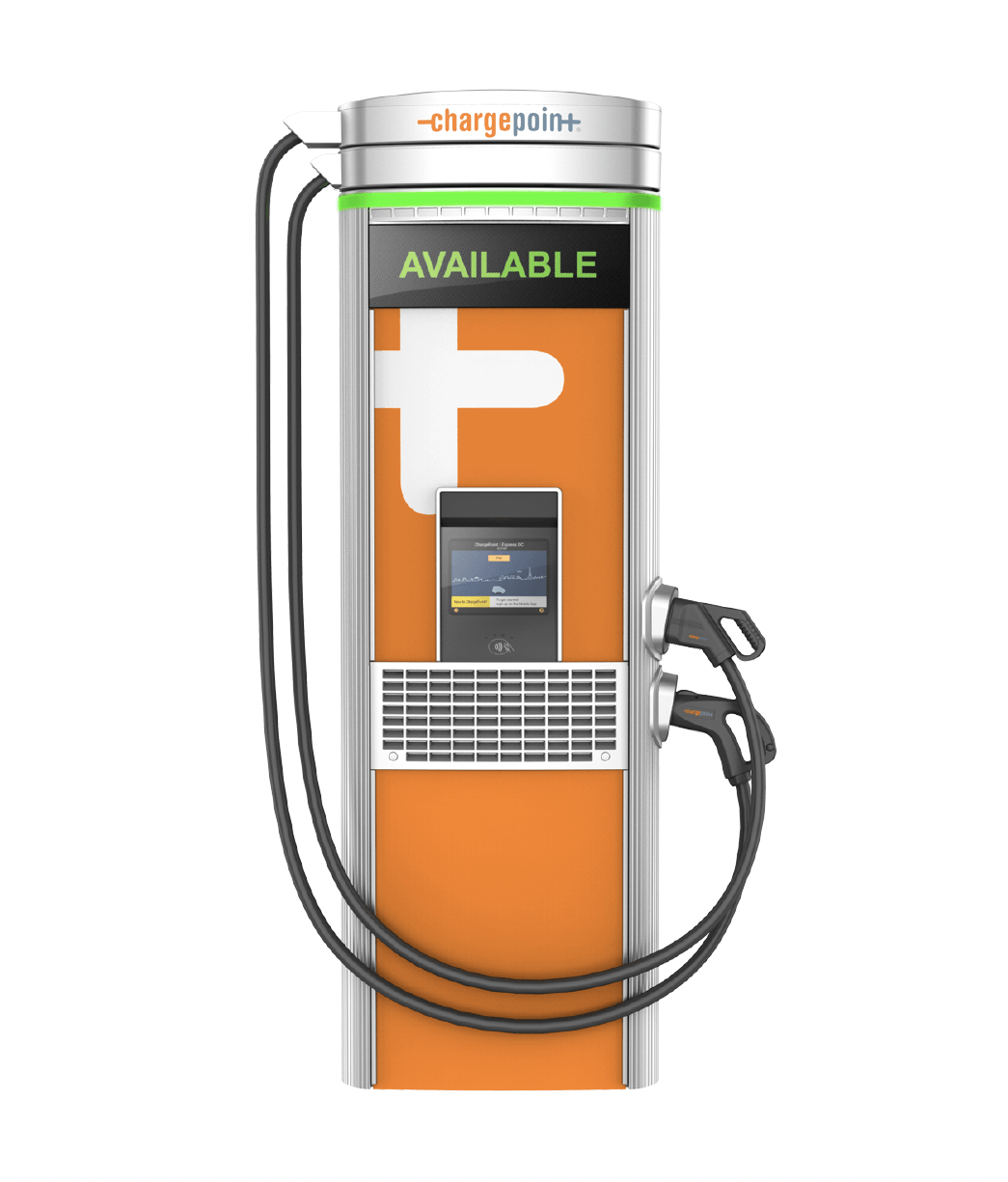

Standalone Express
A single Express offers flexibility with your EV charging programme. Its small footprint makes it easy to deploy and gives drivers the ability to add range quickly if an AC station isn’t available.
With 25% more power than 50 kW stations, the Express allows sites to charge more vehicles faster. As demand for fast charging increases, a single station can be paired to provide more power.
Paired Express
A Paired Express installation does more than just double the power of a single station. It is a smart solution that shares power between the two stations to better address the energy requirements of vehicles.
In a paired configuration, the Express can charge two vehicles at the same time and share power based on power allocation polices that best meet the demands of the site. The paired configuration is redundant, ensuring that stations continue to operate if issues arise.
The Paired Express is the best way to support current and future vehicles with the same installation.

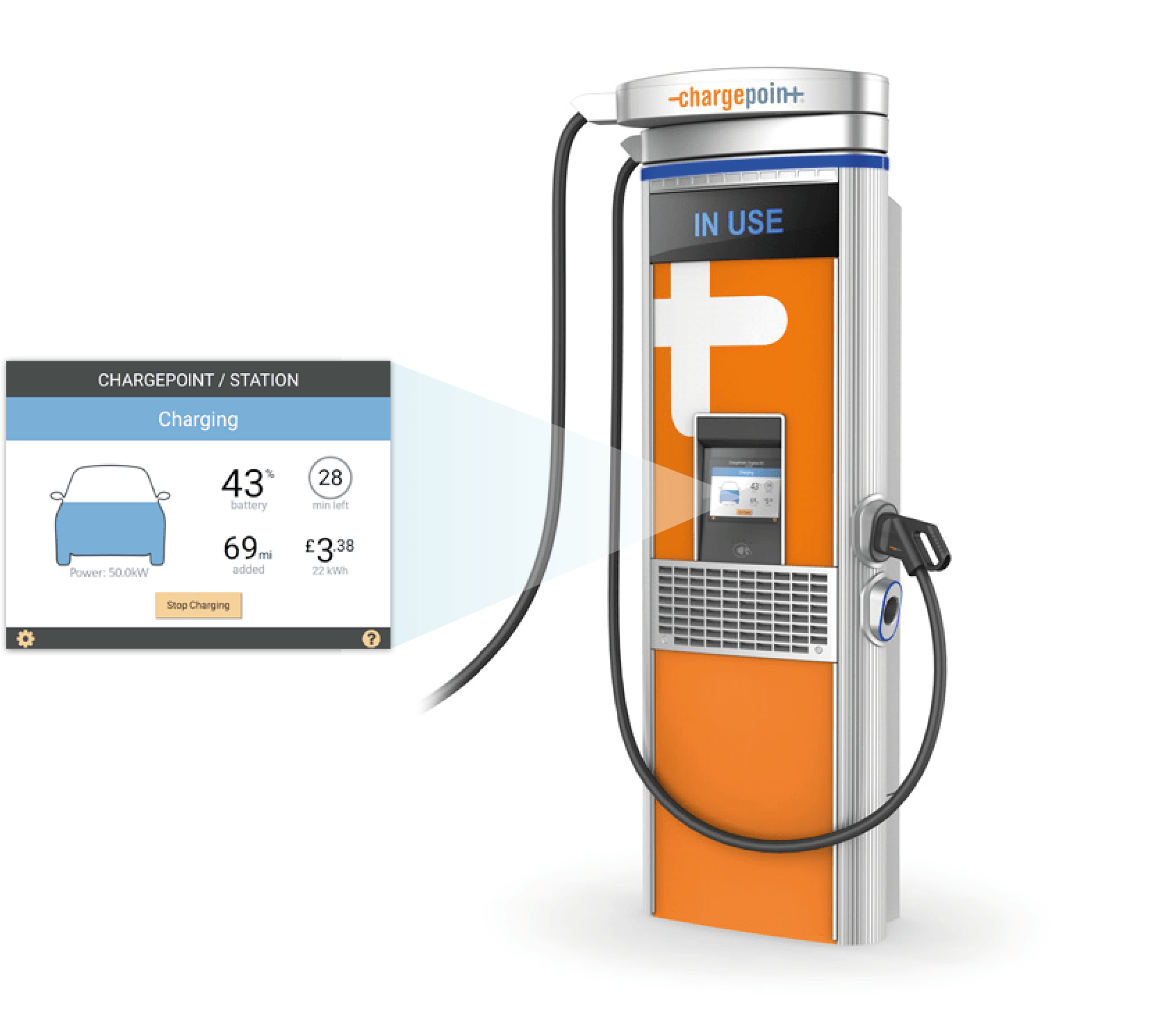

Above: Touch sensitive LCD display shows charging information and can be used in any season.
The network effect
When you choose ChargePoint Express you don’t just get the most advanced stations in the industry, you also get the world’s largest EV network and useful features that let you:
+ Set specialised pricing policies and access controls
+ Make your stations visible to hundreds of thousands of EV drivers
+ Generate usage and energy reports
+ Get over-the-air updates to system software so the latest capabilities are always available
+ Sit back and relax with industry-leading service and support for your stations and your drivers
General specifications
| Feature | Description |
|---|---|
| Station Dimensions | 2,230 mm x 712 mm x 420 mm (7'4" x 2'4" x 1'4") |
| Power Module Dimensions | 760 mm x 430 mm x 130 mm (2'6" x 1'5" x 5") |
| Station Weight (without modules) | 250 kg (551 lb) |
| Power Module Weight | 45 kg (98.5 lb) |
Functional interfaces
| Feature | Description |
|---|---|
| Max Connector Types per station | Up to two different connector types per station |
| Supported Connector Type | CHAdeMO, CCS1 (SAE J1772TM Combo), CCS2 (IEC 61851-23) |
| Cable Length with Swing Arm* | Full Horizontal Reach: 4.27 m (168”)* |
| LCD Display | Full-colour 254 mm (10 in) LCD display for driver interaction |
| Top Display | Full-colour 508 mm (20 in) LED display for notifications |
| Authentication | RFID: ISO 15693, ISO 14443, NEMA EVSE 1.2-2015 (UR) Tap to Charge (NFC on Apple & Android) IEC 15118-2 (EIM) Remote: Mobile and in vehicle (if supported by vehicle) |
* Horizontal reach to typical vehicle charging port: 3.76m (148”).
Energy management features
| Feature | Description |
|---|---|
| Dynamic Power Management | Allows a fixed maximum power output per station or lets the system dynamically manage the power distribution per station |
| Remote Energy Management | Manage output power via the ChargePoint Admin Portal, API, and Open ADR 2.0b VEN |
ChargePoint, Inc. reserves the right to alter product offerings and specifications at any time without notice.
